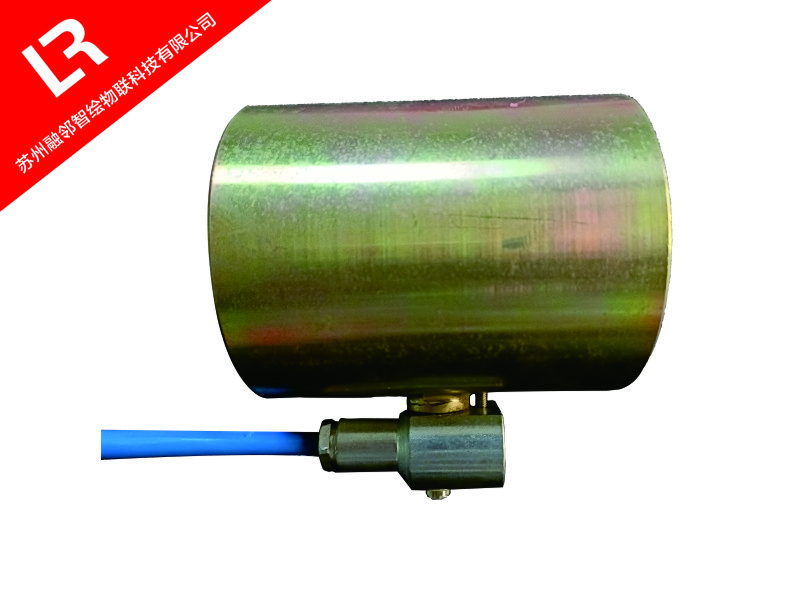

Vibrating string anchor cable dynamometer
Instrument specifications:300KN
Instrument model:RL-600
Instrument number:30533
Insulation resistance :≥50MΩ
Factory frequency value: Red:1801（Hz）
Green:1807（Hz） Blue:1803（Hz）
Wire length:1M
Waterproof pressure:0.3MPa
Calibration coefficient:K value:K=1.84×10-4KN/Hz²
Calculation formula:P=K（fo²-fi²）
P=KN
fo:(Red+Green+Blue)/3 Initial frequency value（Hz）
fi:Real time measurement of frequency values（Hz）
Remarks:Has passed ISO9001 quality system certification.
The black line is a common line.
